Haas 03-0594 1/2" Dia. Carbide Ball End Mill, 2 Flute, Uncoated, 1/2" Smooth Shank x 1-1/4" LOC, HSAM1
Description

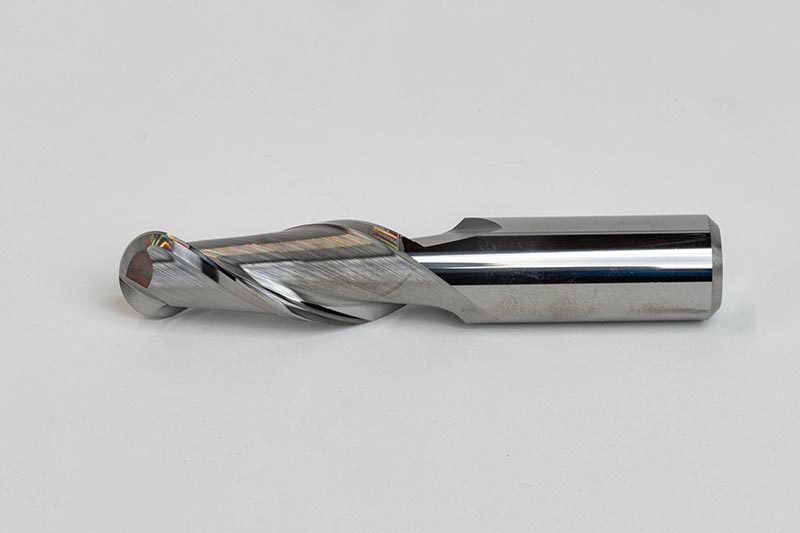

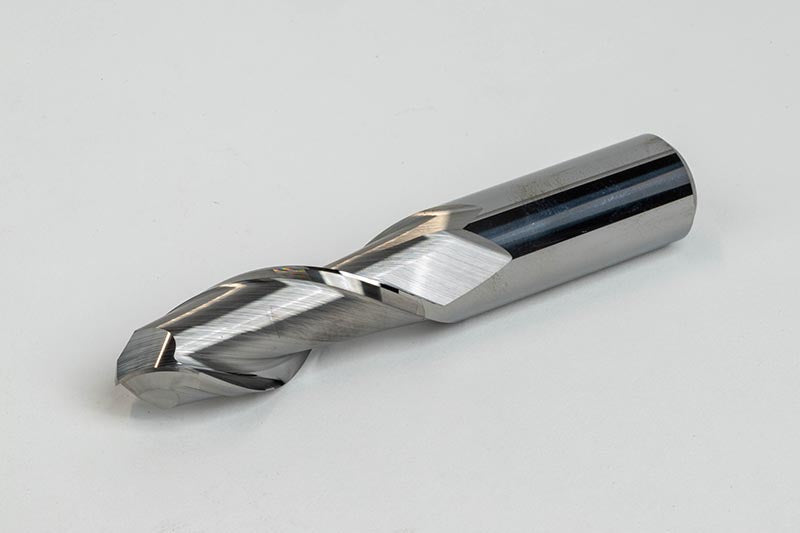

This HSAM1 2-flute carbide ball end mill has a 0.5 in \ 1/2" cutting diameter, with a 1/2" smooth shank, 1-1/4" length of cut (LOC), 1/4" ball radius, and a 3" overall length. It is uncoated, and made to cut aluminum/non-ferrous materials.
|
System of Measurement |
Inch - ANSI |
|
Haas Milling Series |
HSAM1 |
|
Material |
Carbide |
|
Coating |
Uncoated |
|
Corner Type |
Ball |
|
Shank Type |
Smooth |
|

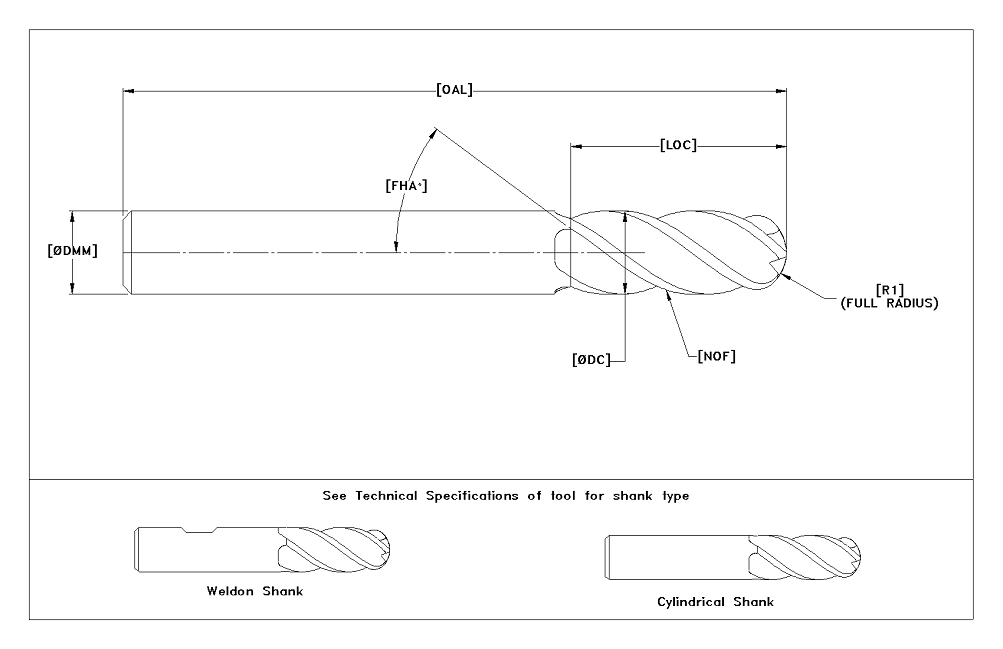

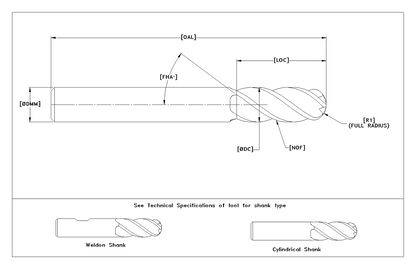

[ØDC] Cutting Diameter |
0.5 in \ 1/2" |
|
[ØDMM] Shank Diameter |
0.5 in |
|
[LOC] Length Of Cut |
1.25 in |
|
[OAL] Overall Length |
3.0 in |
|
[NOF] Number of Flutes |
2 |
|
[R1] Radius |
0.25 in |
|
[FHA°] Helix Angle |
37 |
|
Cutting Direction |
Right |
|
Center Cutting |
Yes |
|
Variable Pitch |
Yes |
|
Through Spindle Coolant |
No |
|
Weight |
0.3 lbs \ 0.1 kg |
|
Country of Origin |
South Korea |
